127mm x 5mm VAI HF Tube Mill with Packaging Line (2000)

Model
Not Specified

Stock #
605223

Condition
Used

Year
2000

Tube Diameter 5 inches

Equipped With

Make: VAI (Austria)
Year New: 2000
Tube Diameter: 30mm - 127mm
Wall Thickness: 0.9mm - 5mm
Speed: 100 meters per minute
Direction: Right to Left
Material Yield: 235 Mpa
Tooling: 17 sets, Round, Square, Rectangular

Entry Coil Car
Floor Standing V-Type Design
Powered Traverse & Lift

Mandrel Uncoiler
Powered Expansion
Powered Hold - Down Roll
Sliding Base
Feed-Up Motor

Shear & End Welder
TIG Power Supply
Mechanical Shear

Driven Pinch Rolls
Coil Straightening Machine

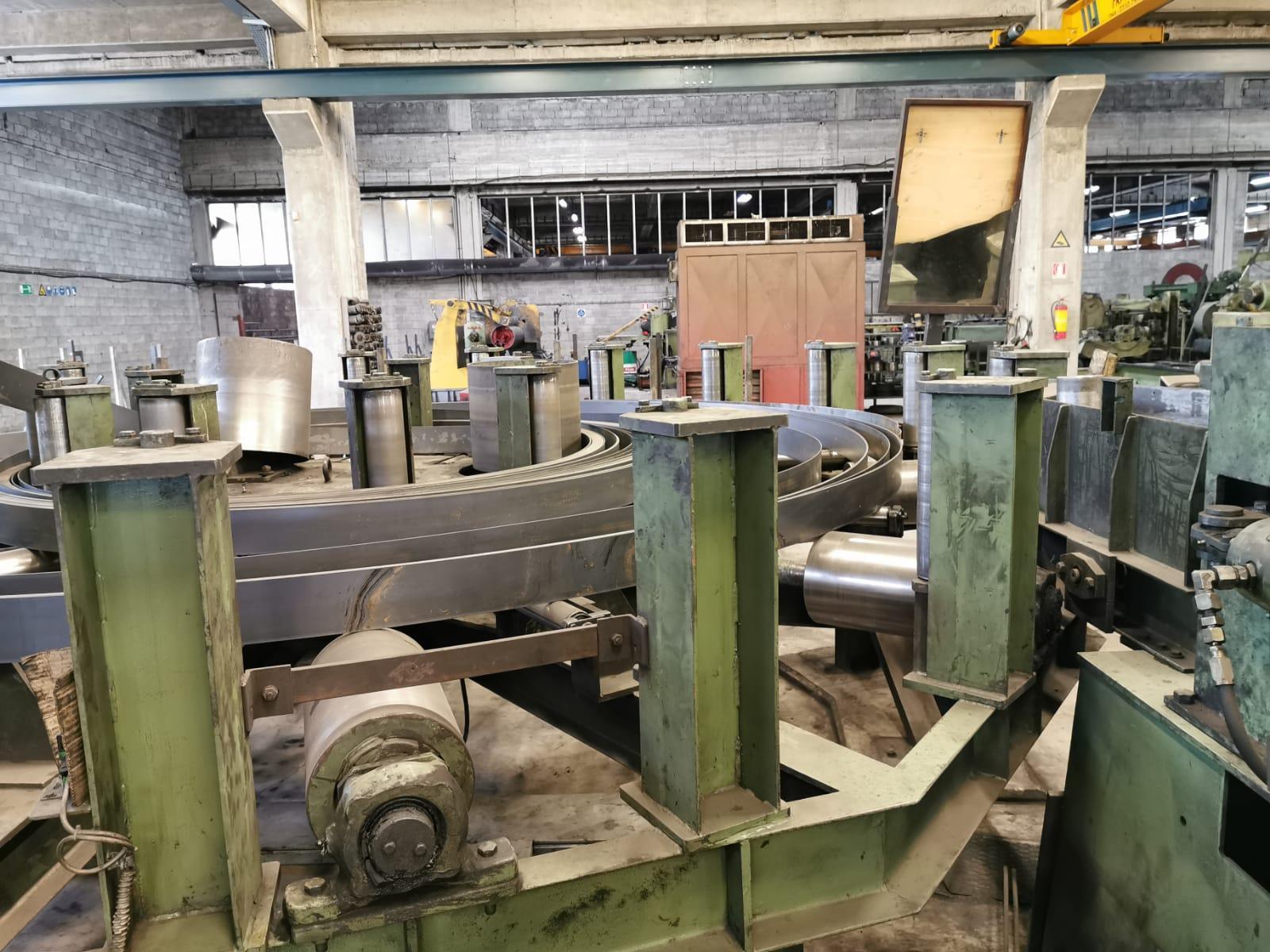

Horizontal Accumulator
Entry & Exit Pinch Rolls
Coil Feeding Unit
Variable Speed Drive

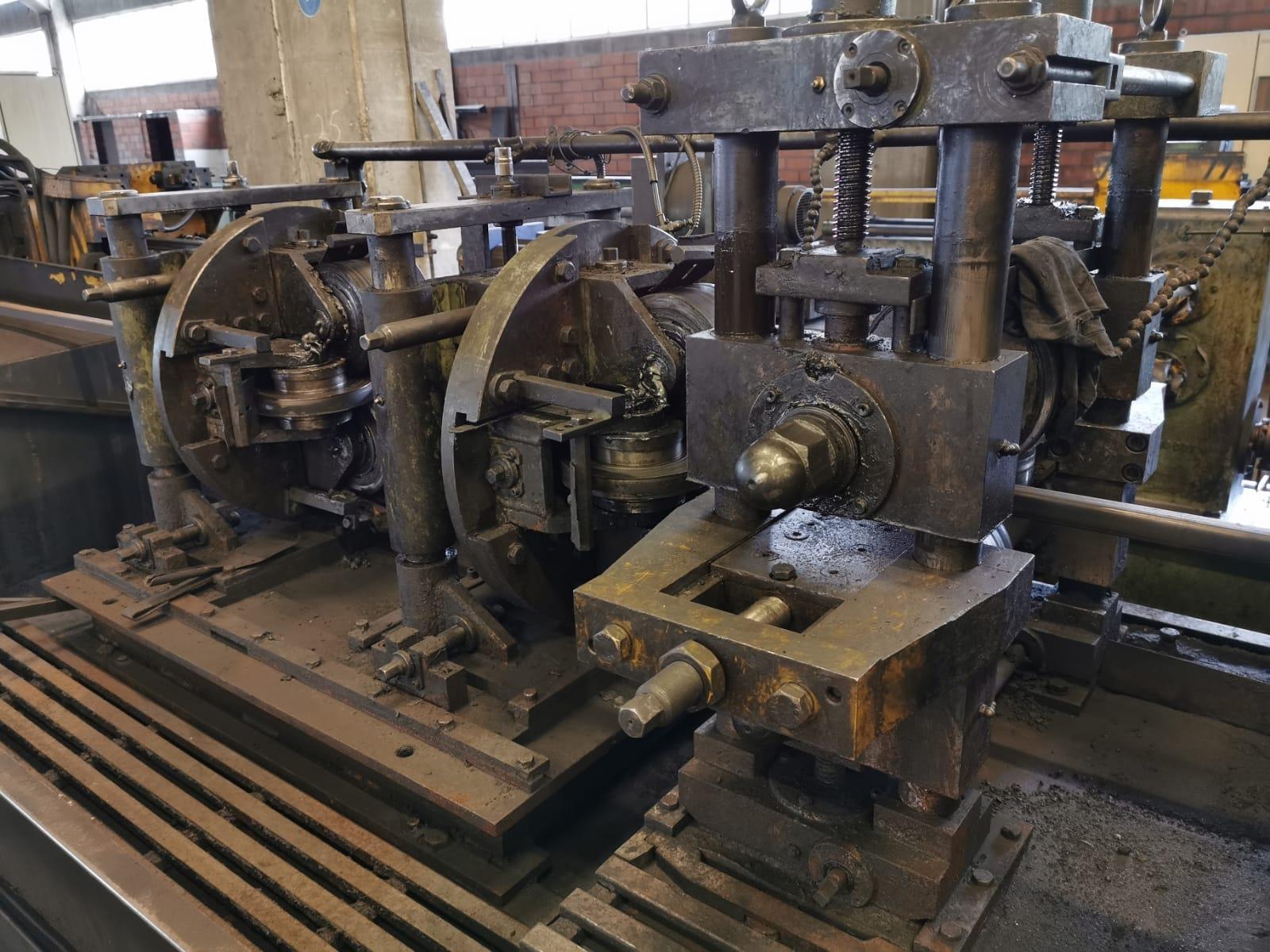

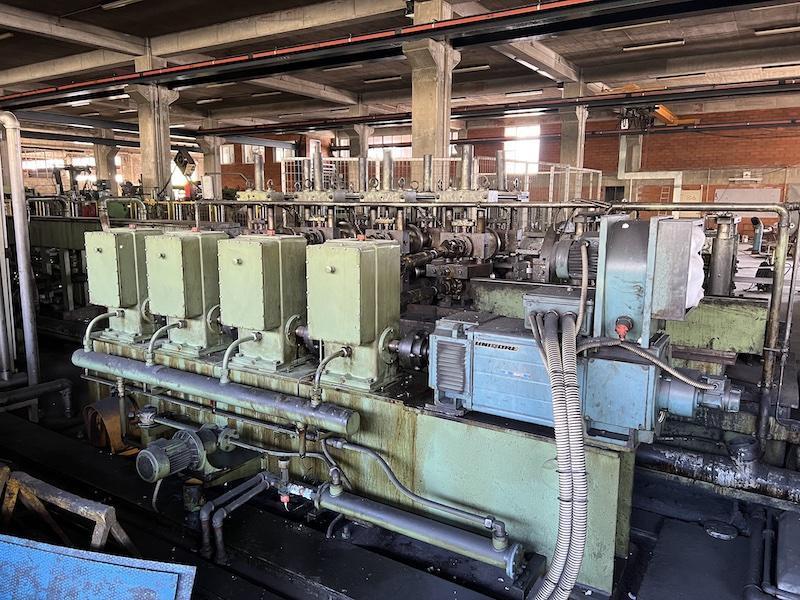

Forming Mill
Shaft Diameter: 80mm
Eight (8) Forming Stands
Seven (7) Side Forming Stands
Horizontal & Vertical Stand Adjustment
Individual Gear Boxes
Universal Drive
Variable Speed DC Motor Drive

300Kw High Frequency Welder
Make: Elomat
3-Roll Adjustable Welding Box
Bid Removing Head & Winder
Cooling Section

Sizing Mill
Shaft Diameter: 80mm
Four (4) Sizing Stands
Three (3) Side Sizing Stands
Two (2) Adjustable Turk Heads
Individual Gear Boxes
Universal Drive
Variable Speed DC Motor Drive

Cut - Off Section
Make: BRP (Austria)
Cut - Off Type: Flying Friction Saw
Blade Diameter: 700mm
Hydraulic Traverse Drive
Length Control System

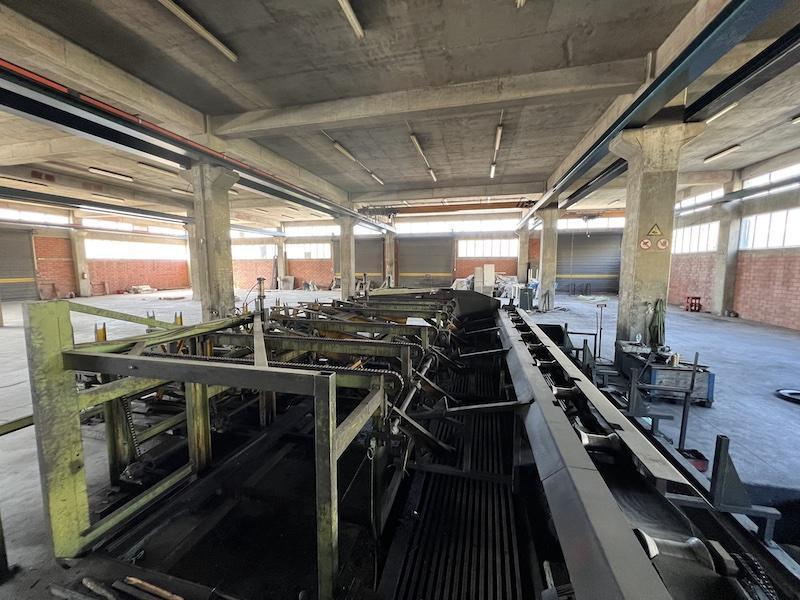

Exit Driven Table
Driven End Table

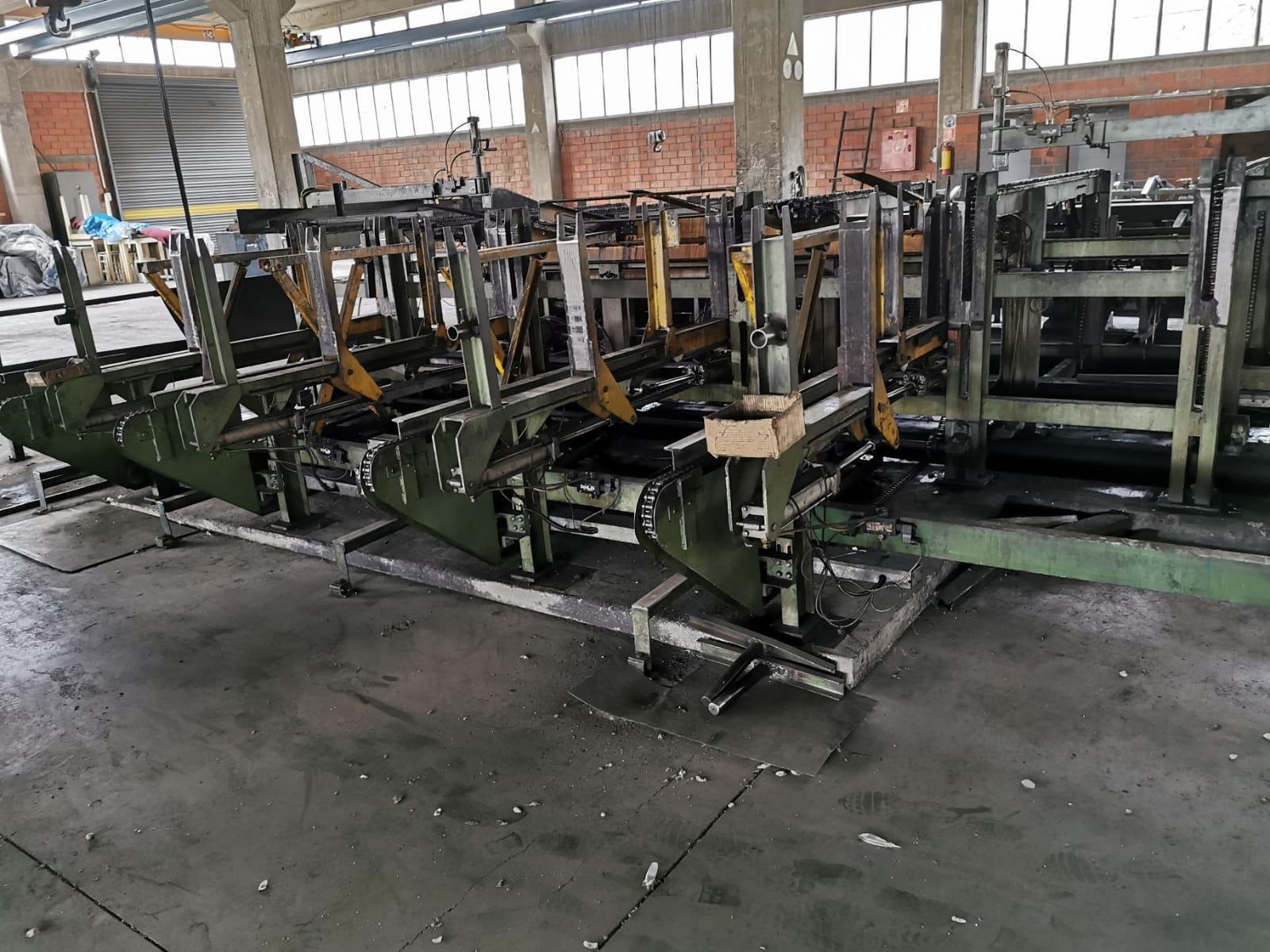

Automatic Packaging Line
Weighting and Labeling Equipment
Pneumatic and Mechanical Drives

Electrics, Hydraulics, Controls, Lots of Tooling List Available per Request
