1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
  • 1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
  • 1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
  • 1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line
  • 1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line

1250mm (48") x 1.5mm (0.060") x 15 Ton Mariani Loop Cut to Length Line

Brand
MARIANI

Model
Not Specified

Type
Cut To Length Lines

Stock #
605248

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 30000 pounds
Width 48 inches
Thickness .060 inches
ID 20 inches
Max OD 59 inches

Equipped With

Maximum Coil Width: 1250mm
Thickness Range: 0.4mm to 1.5mm *(2mm)
Strip Width Range: 130mm to 1250mm
Material: Cold Rolled Steel, Galvanized Steel
Tensile Strength: 450Nmm2
Yield Strength: 450Nmm2
Sheet Length Max and Min: 5000mm -400mm
Sheet Package Max Weight: 4 Tons
Cutting Speed: 45 mpm
Line Direction: Left to Right

Complete Line with the Following Components:

Pit Type Coil Car

Mandrel Uncoiler
Max Coil OD: 1580mm
Coil ID Range: 508/610mm
Hydraulic Expansion
Sliding Base
Powered Hold Down Roll

Peeler Table

Entry Edge Guides

Powered Pinch Rolls

Double Set of Edge Guides

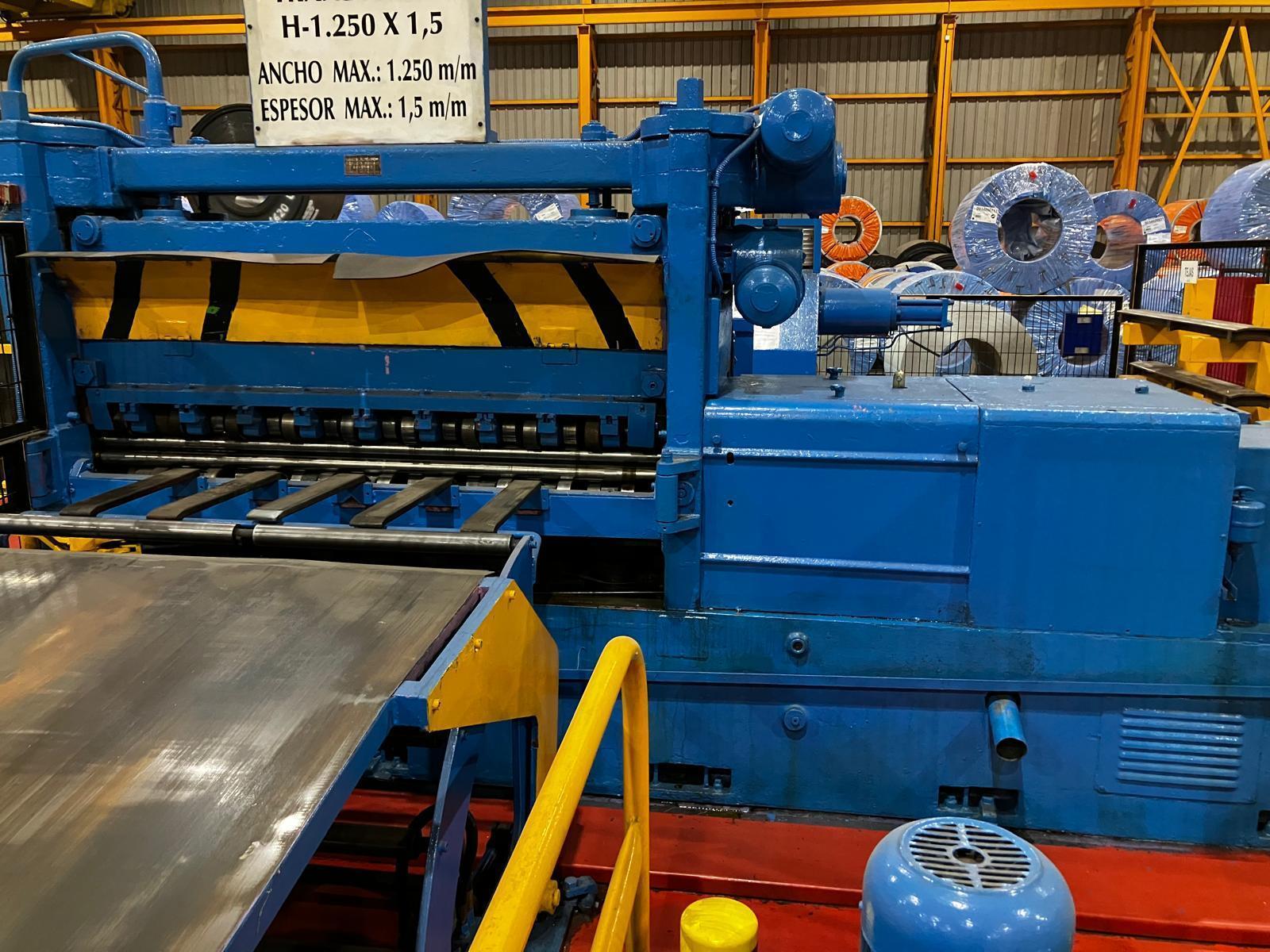

4-HI Precision Leveler
19 Work Roll Design
Work Roll Diameter: 49mm (1.9")
4 Flights of Top and Bottom Motorized Back Ups
*Spare Work Rolls Available

Entry and Exit Cascade Rolls

Pit Cross Over Table

Feeding Roll

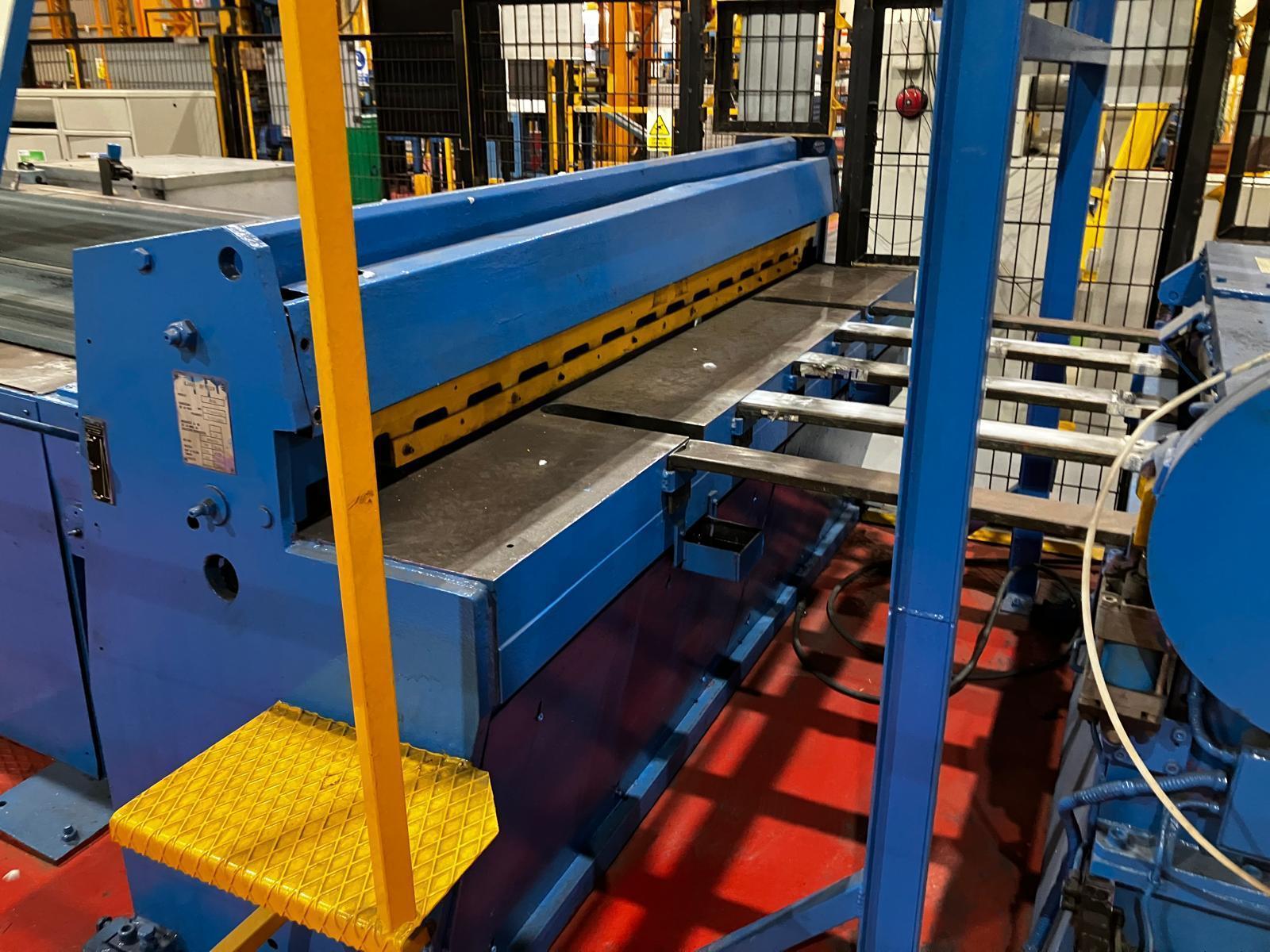

Mechanical Shear

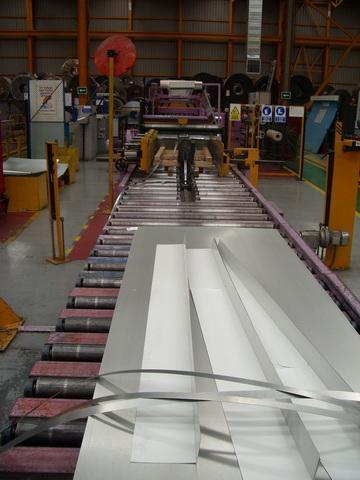

Run Out Table

Drop Type Stacker

Exit Conveyor

Mitsubishi A1SH PLC

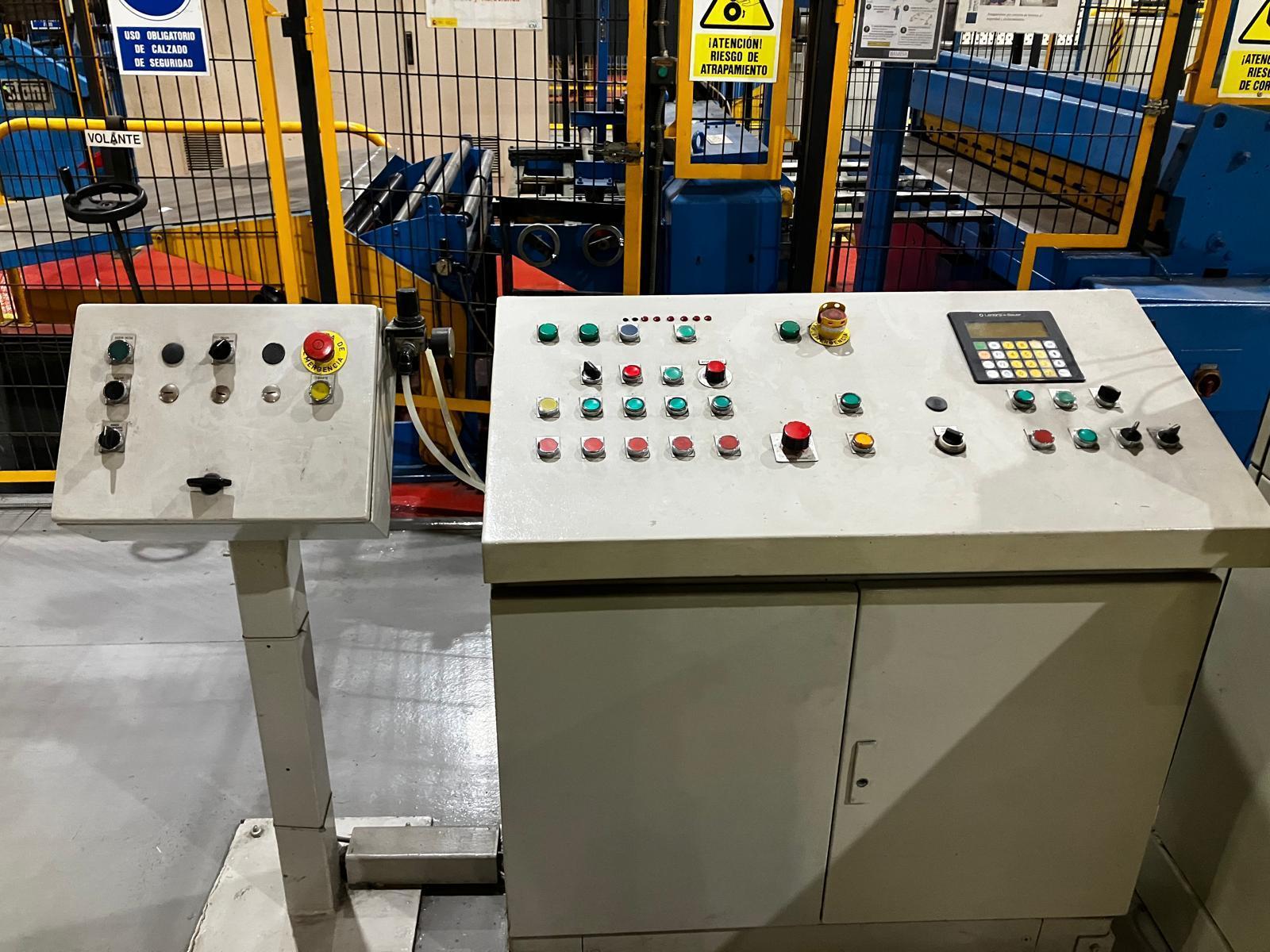

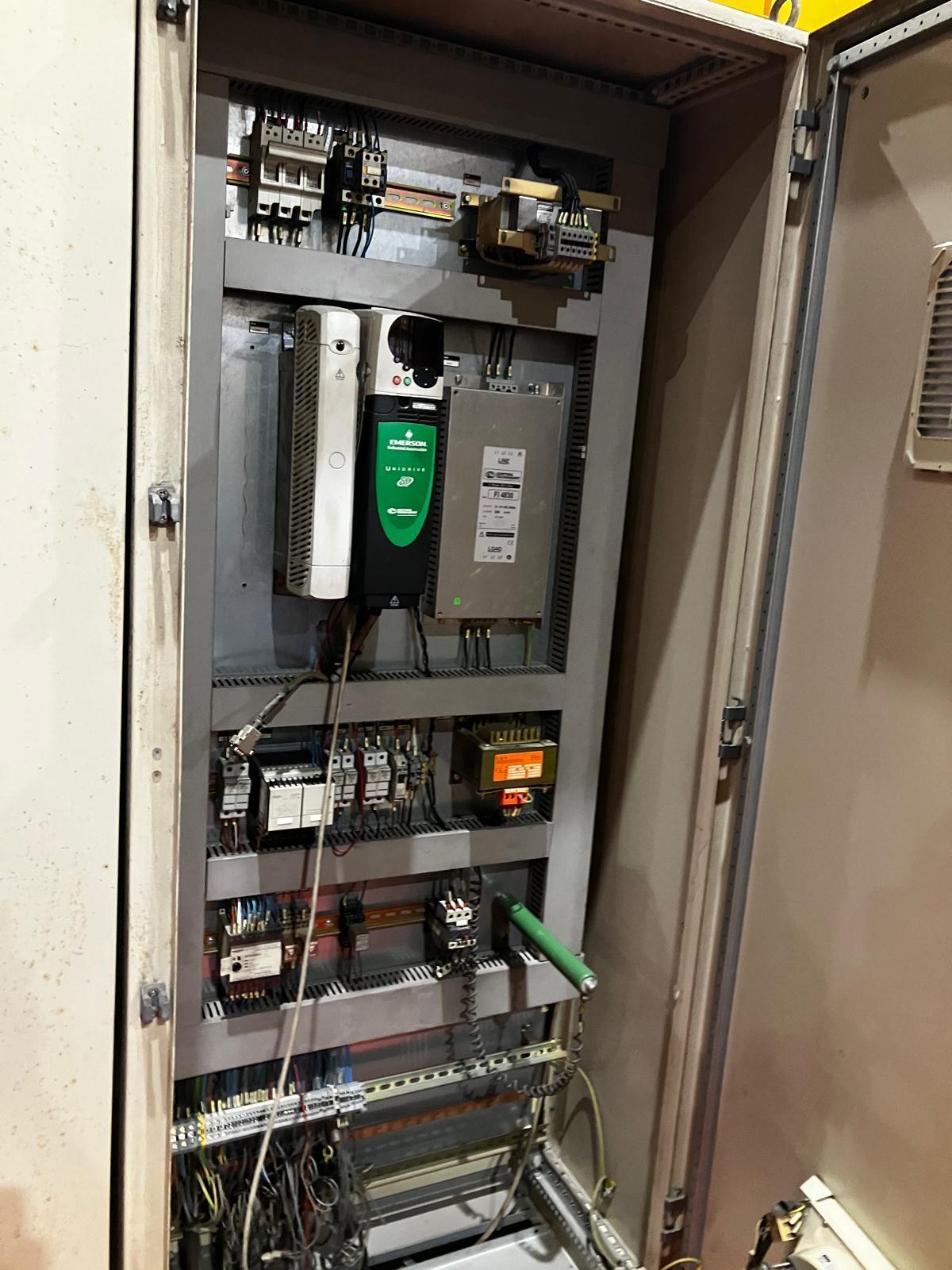

Complete Line with Electrics, Hydraulics, Controls

Installed
