Equipped With

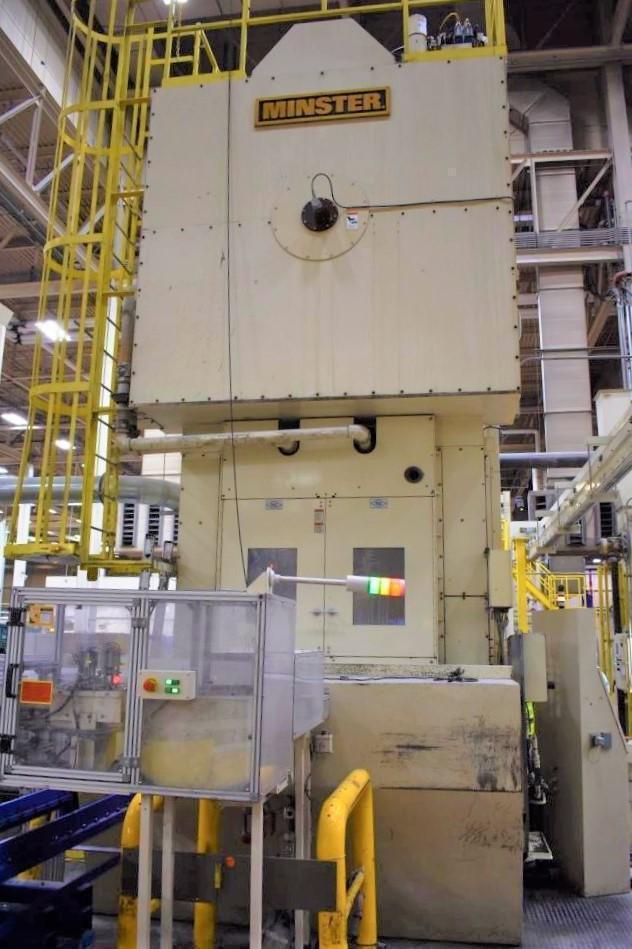

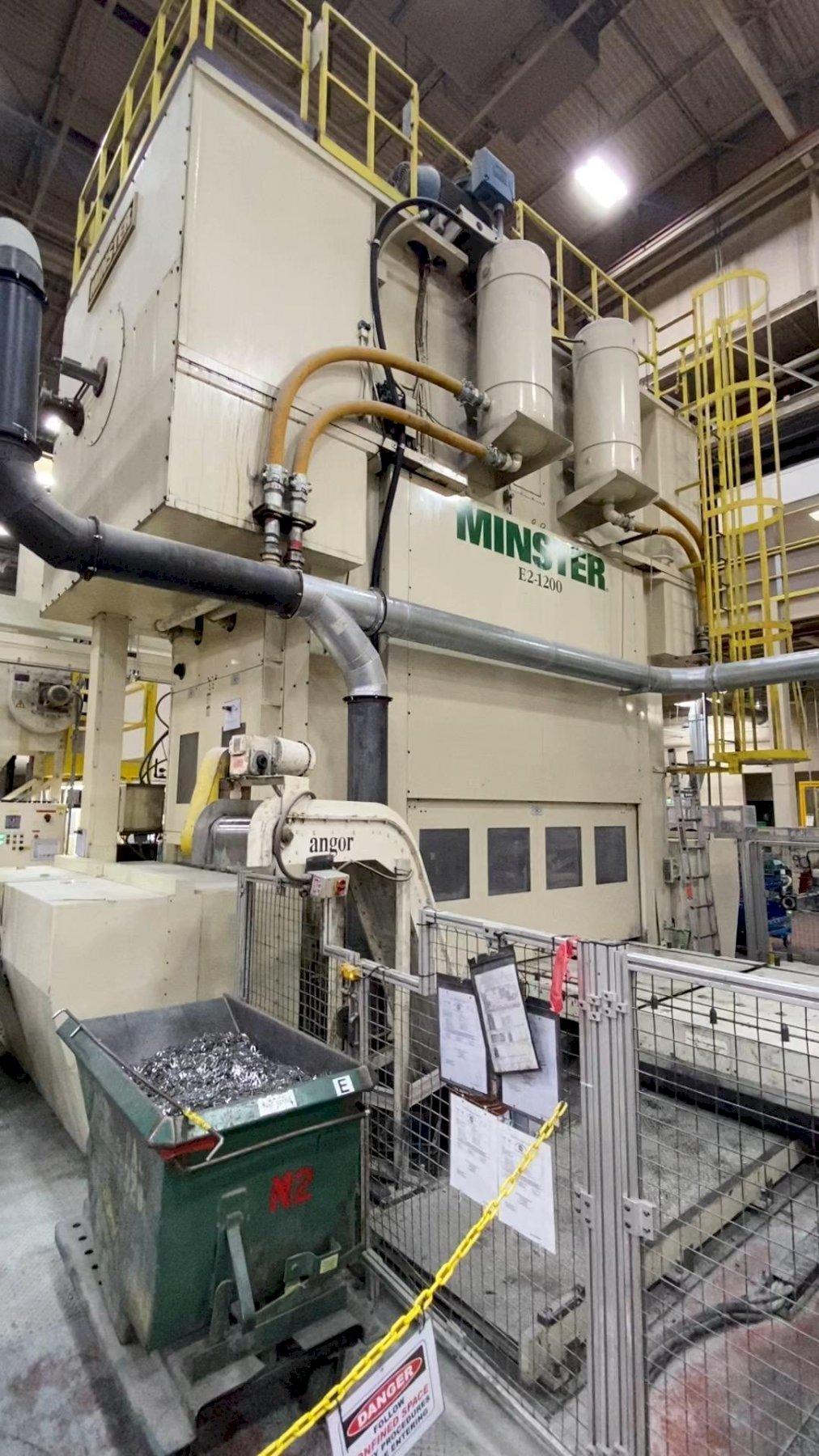

Minster 2 Point Eccentric Shaft Straight-Side Transfer Press
Model: E2-1200-120 x 60
Mfg Year: 2011
1200 Ton Capacity
12" Stroke (305 mm)
44" Shut Height (SDAU) (1118 mm)
12" Slide Adjustment (305 mm)
120" LR x 60" FB Bed Area (3048 mm x 1524 mm)
25-45 SPM Variable
Equipment & Features:
10.8" bolster plate(275mm)
Wayne Trails Model WTTS-II Servo Transfer
Air Clutch & Brake
Hydraulic overload protection
63"(1600mm) wide windows
Automatic counter balance adjustment
Pnuematic Bed Knockout system
Slide knock out cylinders
30 Ton Dayton Pnuematic Draw cushion
Adjustable die safety blocks
Wayne Trails Transfer feed
(4) Vibro-Dynamics Isolator mounts
Press is pit mounted.
200 H.P. 1800 RPM Main Drive motor. 480/3/60
