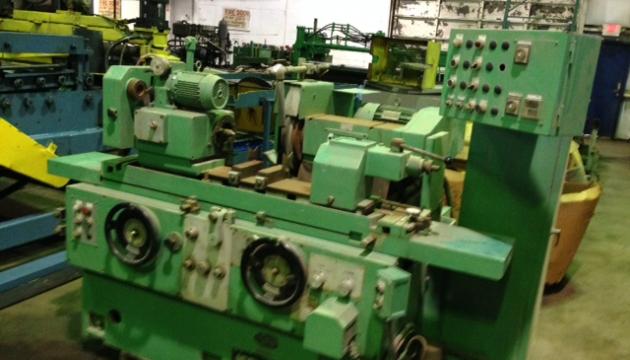

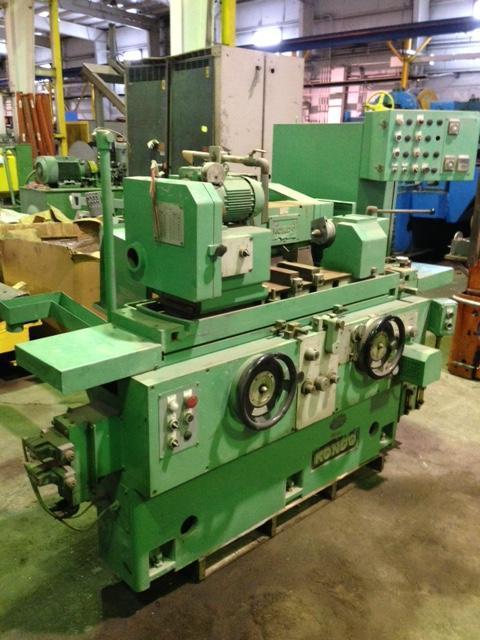

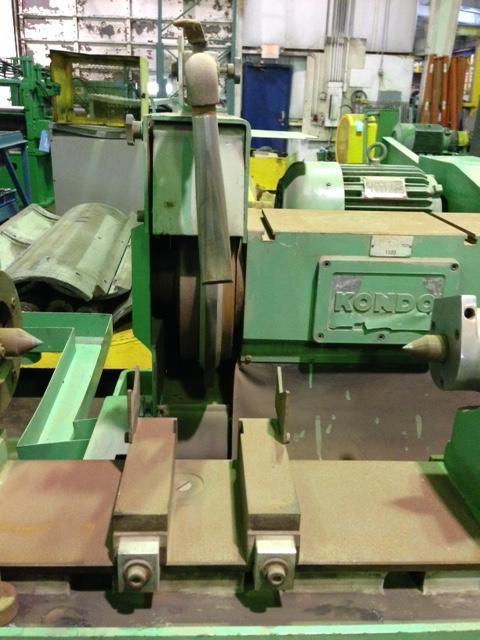

Manufacturer: KONDO Japan
Model# CGK-450
Distance Between Centers: 17.71"
Swing Over Table: 11.81"
Max Grinding Diameter: 5.90"
Max Grinding Wheel Size: 16" x 3" x 8"
Wheelhead Travel Length: 6"
Max Wheel Surface Speed: 2,000 m/min
Handwheel Feed Amount Per Turn: 2
Wheelhead Hydraulic Rapid Feed Stroke: 1"
Table Travel Length: 23"
Table Handwheel Feed Amount per Turn: 0.80"
Table Hydraulic Rapid Feed Stroke: 10-2,000 mm/min
Controls
