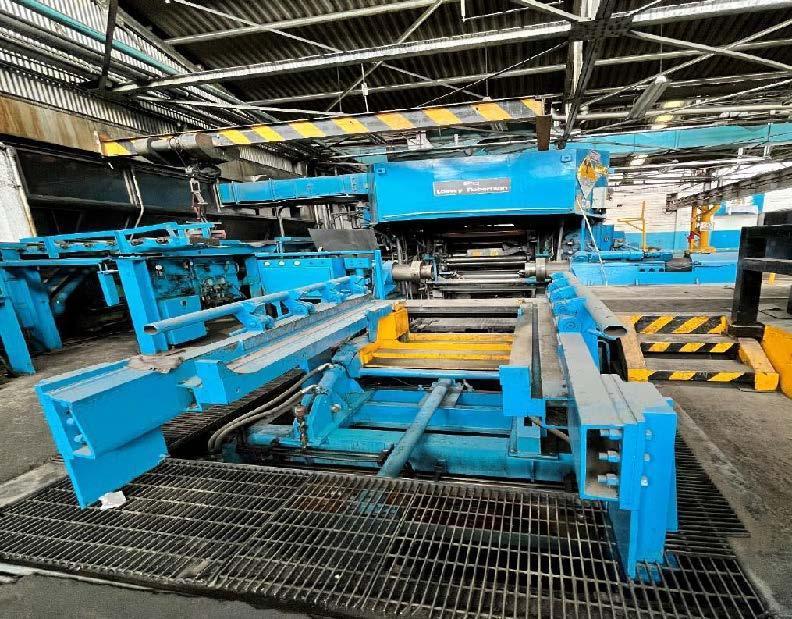

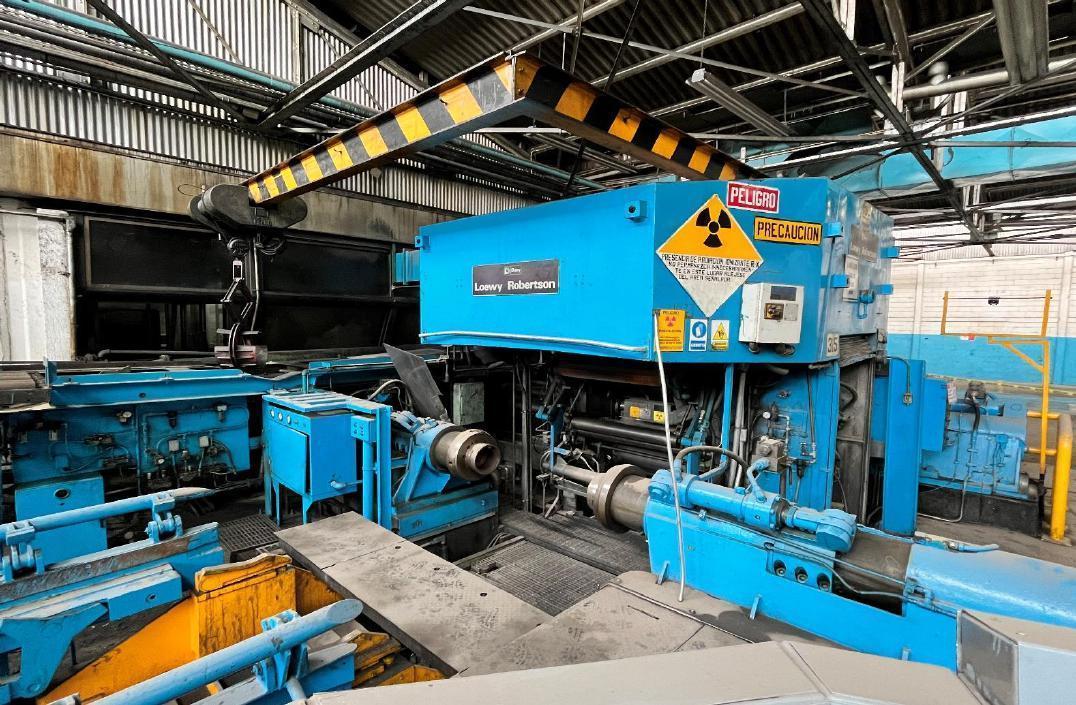

1100mm (43") x 0.089mm Loewy Robertson 4-HI Aluminum Foil Rolling Mill

1100mm (43") x 0.089mm Loewy Robertson 4-HI Aluminum Foil Rolling Mill

Brand
LOEWY

Model
Not Specified

Type
Rolling Mills, 4-HI

Stock #
605247G

Condition
Used

Year

Request a Quote

Have one to sell?

SPECIFICATIONS
FILES & ATTACHMENTS

Width

43 inches

Equipped With

• 9” (228.6mm) x 22” (559mm) x 43.3” (1100mm)

• Manufacturer: Loewy

Technical Specifications:

• Width: 620mm – 1100mm

• Entry Thickness: 0.5mm

• Exit Min Thickness: 0.089 mm.

• Line Speed: 1440 mpm max

• Max Coil weight: 5900 kgs

Mill Data:

• Work Roll Face:1100 mm

• Work Roll Diameter: 280mm

• Back Up Roll Diameter: 559mm

• 2 x 260 kW Motor drive

• Uncoiler Data:

• Coil ID: 400/527/600mm

• Coil OD: 1710mm

• 2 x 60 kW Motor Drive

Recoiler Data:

• Coil ID: 270/527 mm.

• Coil OD: 1710 mm.

• 1 x 60 kW 1 x 75 kW Motor Drive

• Control System KS2100 by Kvaerner (needs to be updated)

• Thickness measurement (needs to be updated)

• Shapemeter Vidimon

• Complete Electric & Hydraulics, Control (needs to be updated)

• Morgoil Lubrication System (needs to be updated)

• Edge Trimmer

Available Rolls & Spare Parts

• Steel Cores

• Schneider Filtration System

• Coolant System

Installed
