Equipped With

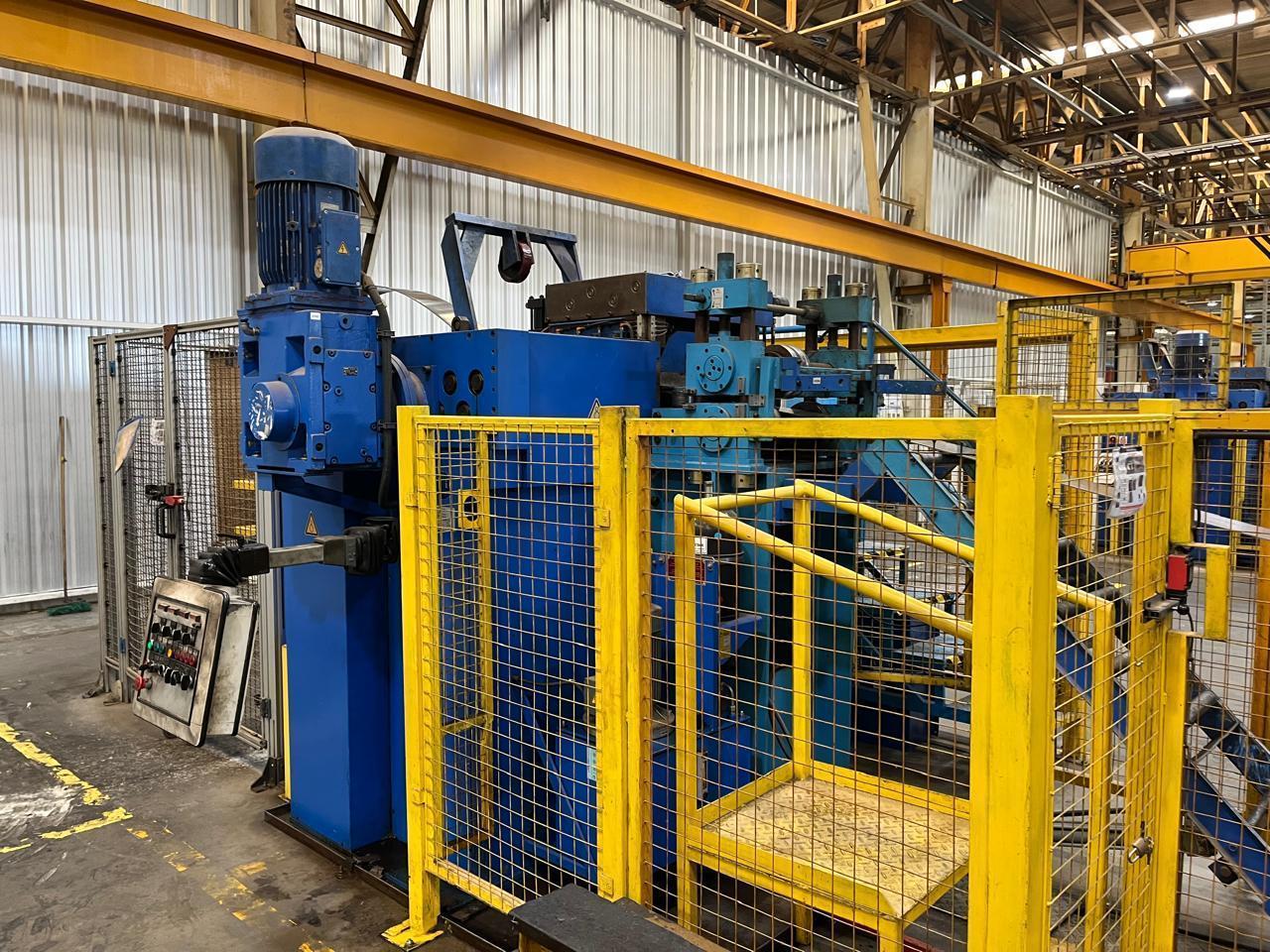

Coil Feed Line:
Thickness Range: 2mm-12mm
Width Range: 80mm-520mm
Coil OD Range: 800mm-1750mm
Coil ID: 500mm
Max Coil Weight: 6000kg

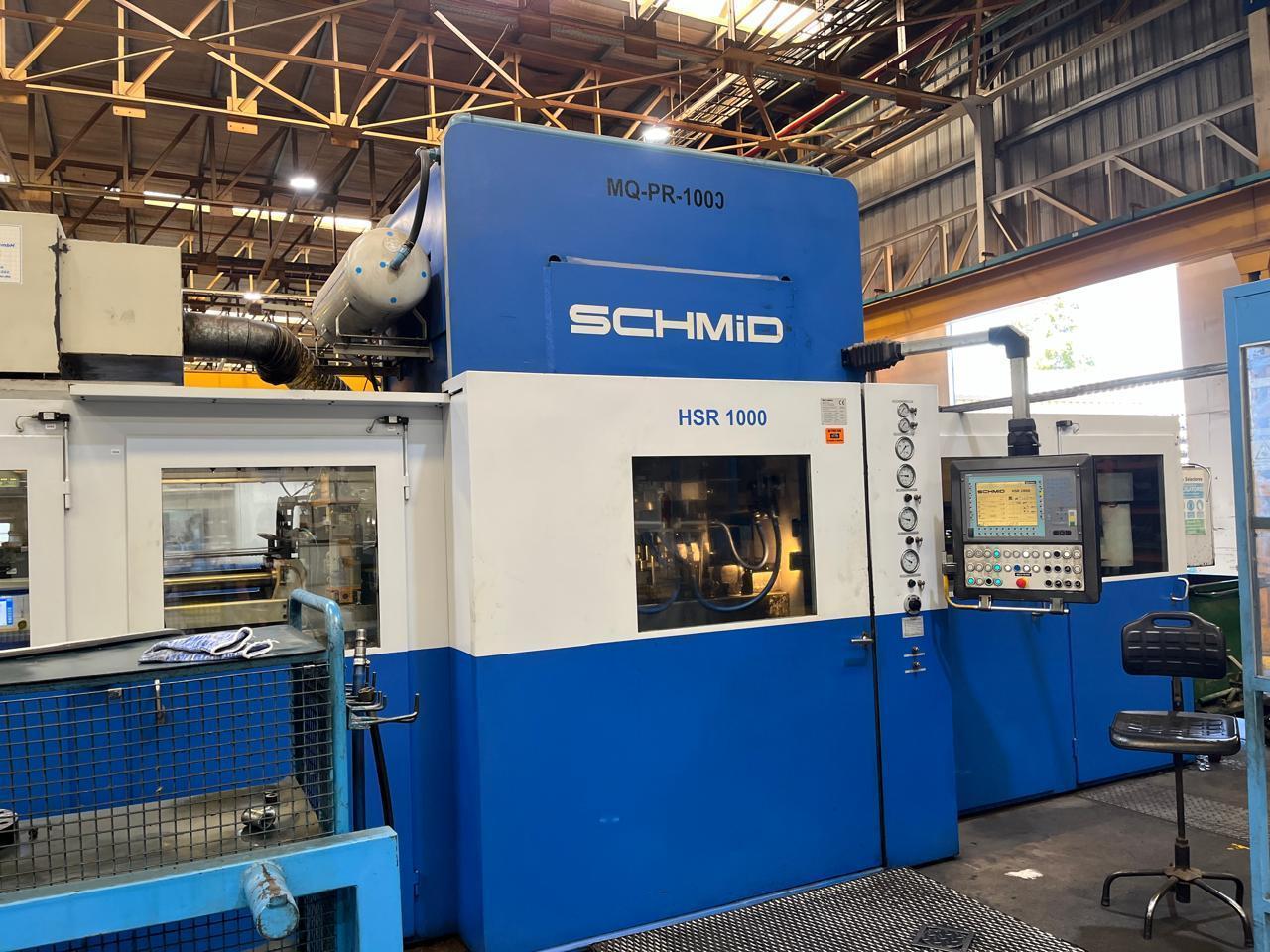

Schmid Press
Year 2007
Model: HSR 1000 Ecoline
Maximum Tool Height: 420mm
Minimum Tool Height: 320mm
Machine Table Dimensions: 900mm x 900mm
Total Force: 100-10000KN
Stamping Force: 50-4000KN
Counter Force: 50-1600KN
Cut Speed: 10-40mm/sec
Pieces a Minute: 8-18 Pieces
Cut Stroke: 0-30mm
Total Stroke: 2mm-205mm
Equipped With:
Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection (By Pressure Editable in Operator Panel)
Tool Protection Inside the Cut
External Tool Protection
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls
