Manufacturer: Ruesch (USA)
Model 210
UPGRADED TO NEW ELECTRICS AND CONTROLS
Work Roll Driven
Material: Low and high carbon steels
O.D.: Max. 61" (1549mm)
Min. none
I.D.: Max. 24" (610mm)
Min. 18" (457mm)
Width: Max. 9" (229mm)
Min. 1.88" (48mm)
Gauge: Max. .375" @ 6" (9.5mm @ 152mm)wide
Min. .015" (.38mm)
Coil Weight: Max. 7,000 lbs. (3.2 Tons)
EXIT SECTION -
I.D.: 18" (457mm), 20" (508mm), 22" (559mm), 24" (610mm)
O.D.: Max. 61" (1549mm)
Coil Weight: Max. 7,000 lbs. (3.2 Tons)
Gauge: Min. .010" (.25mm)
Speed: Max. 1,000 fpm (305 MPM) (low tension)
500 fpm (high tension)
Tension: 3300 lbs. (1.5 MT) @ 1000 fpm (305 MPM)
6600 lbs. (3 MT) @ 500 fpm (152 MPM)
WORK ROLL -
4" (102mm) Diameter
10.5" (267mm) Face
5.63" (143mm) Journals
Back-Up Roll
9" (228mm) Diameter
10.5" (267mm) Roll Face
Complete With:
Coil Lift Box
Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Hold Down Roll
Wichita H2O Cooled Brake
Sliding Base
Peeler Table
Feed-Up Table
2 Winders
DC Driven
Hydraulic Push-Off
Full Hydraulic Drum
Horsburgh & Scott Gear Boxes
100 HP DC Drive 300/1800 RPM

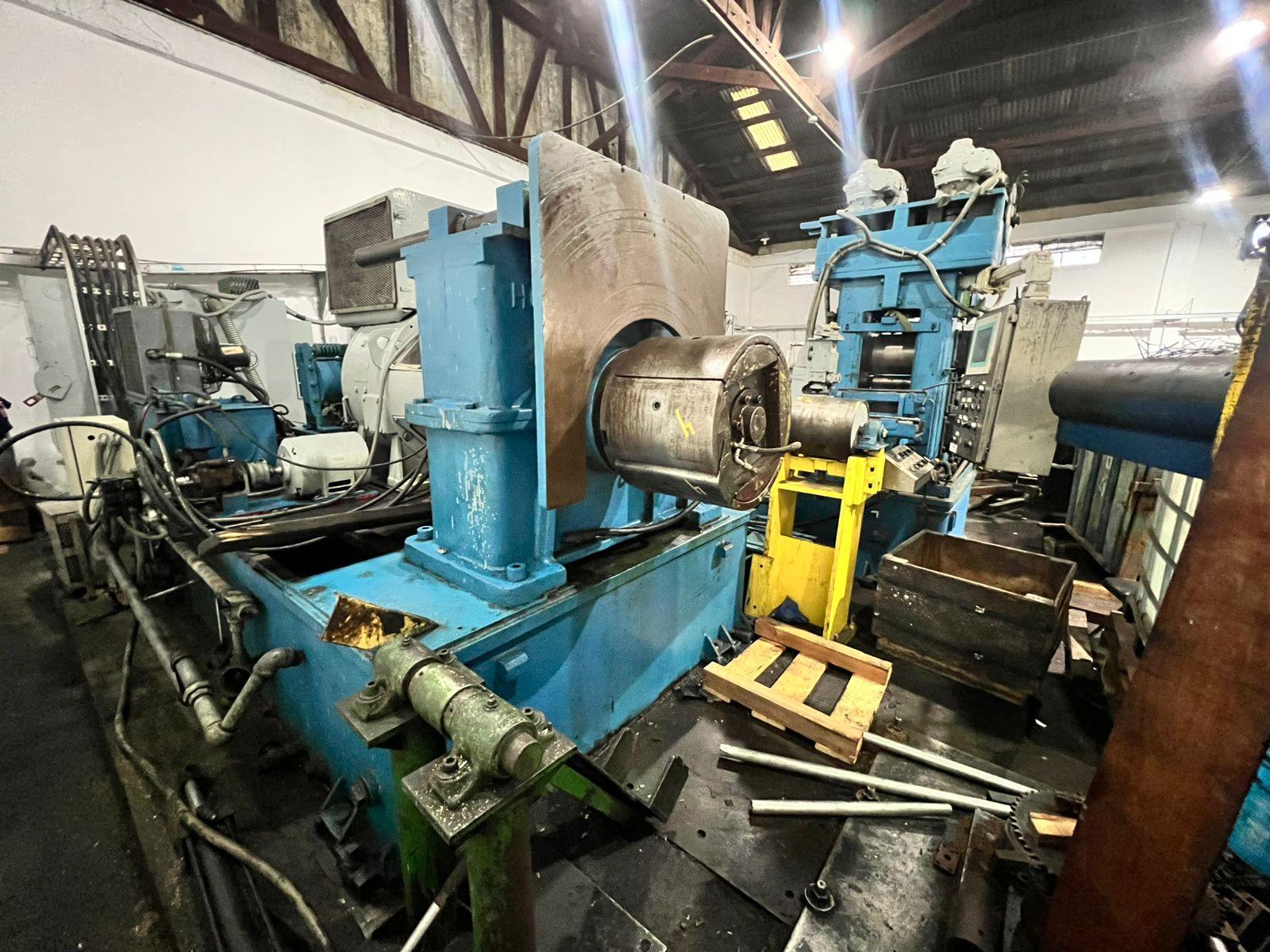

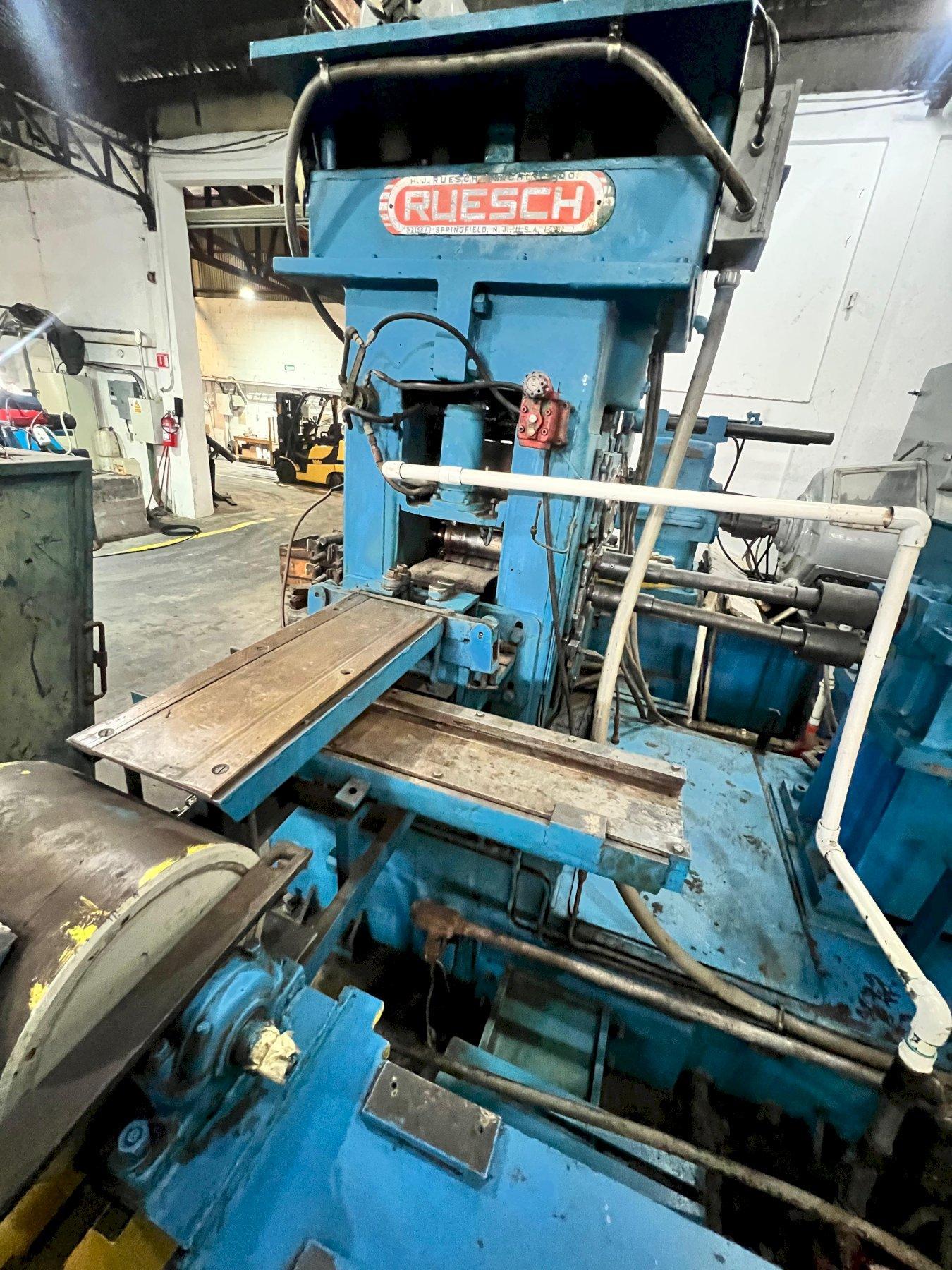

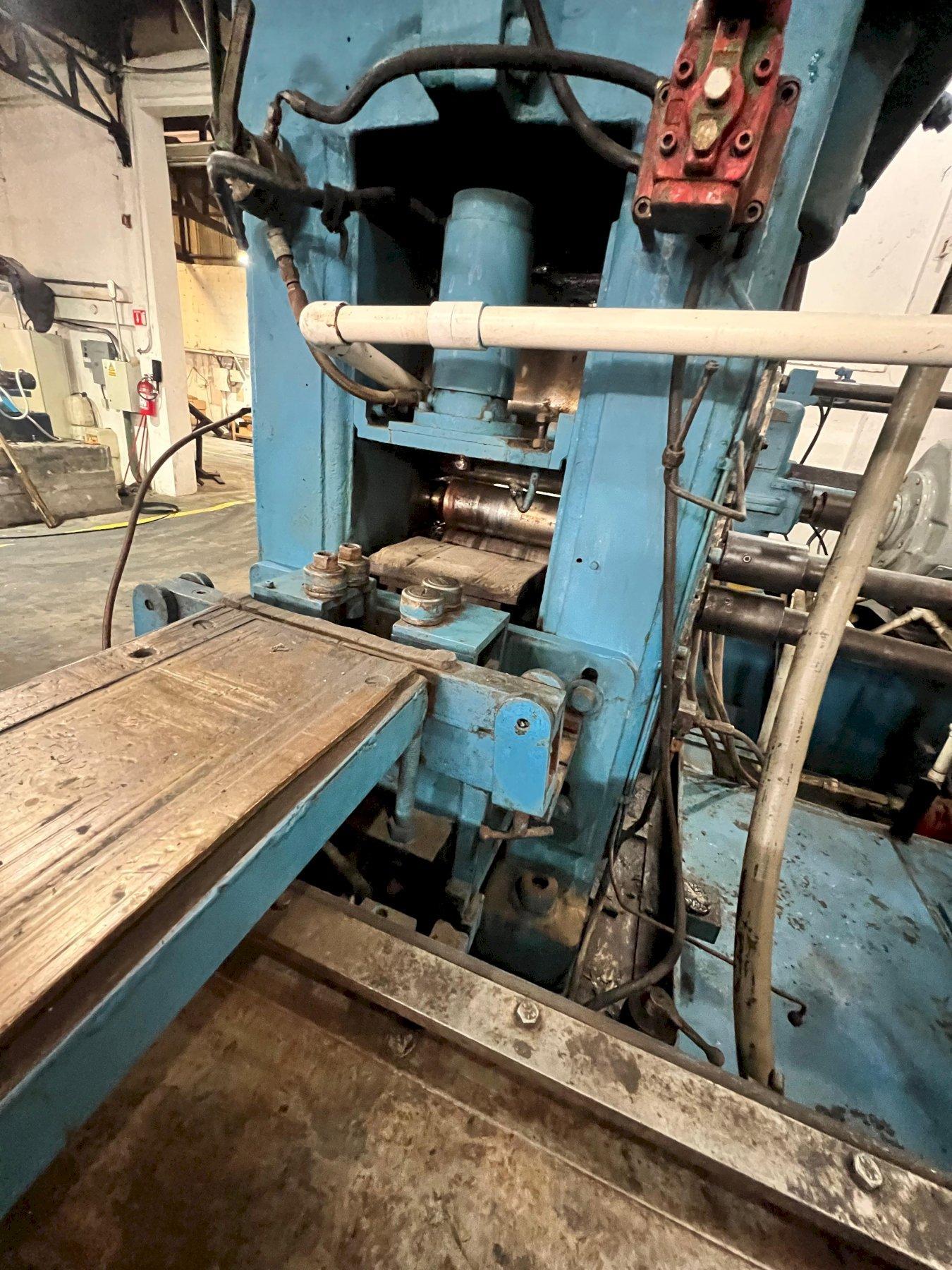

Ruesch 4-High Rolling Mill
Motorized Screw Downs
Timken Roller Bearings
300 HP DC Mill Drive
(2) 2 Arm Exit Turnstiles
Hydraulic Push-Offs
Hydraulic Rotation

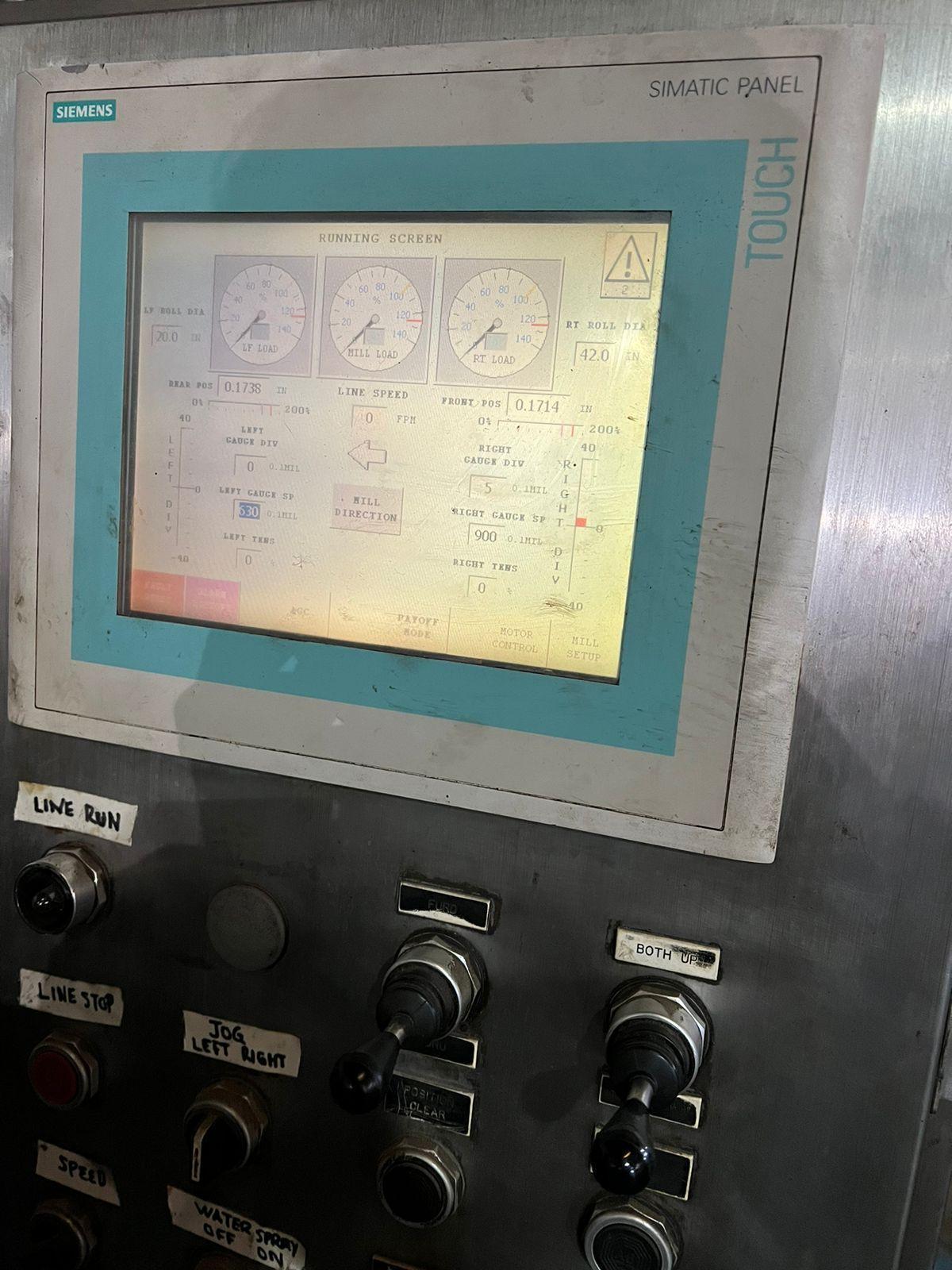

UPGRADED TO SIEMENS SIMATIC Touch Screen

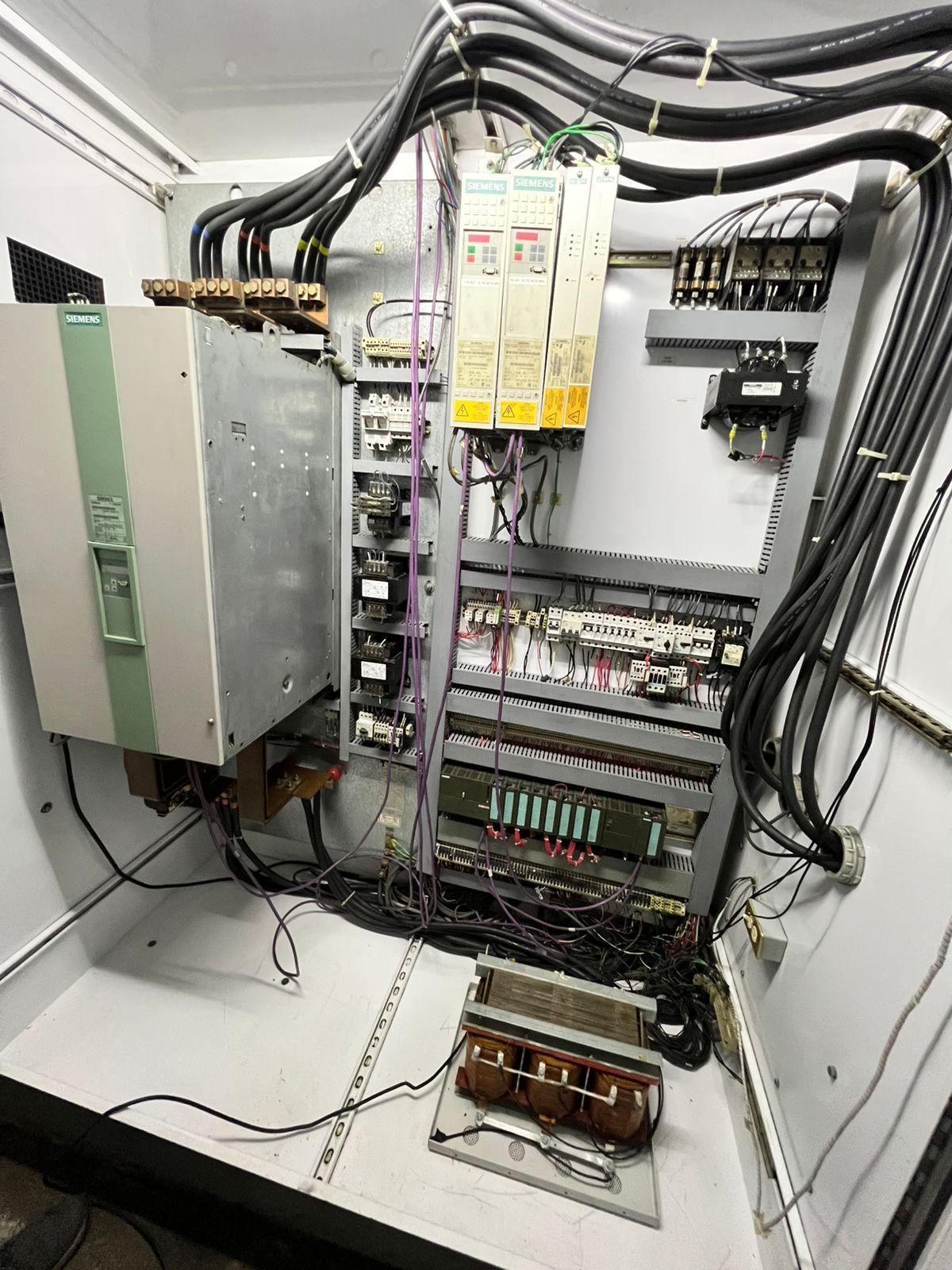

UPGRADED TO SIEMENS SIMOREG DIGITAL DRIVE

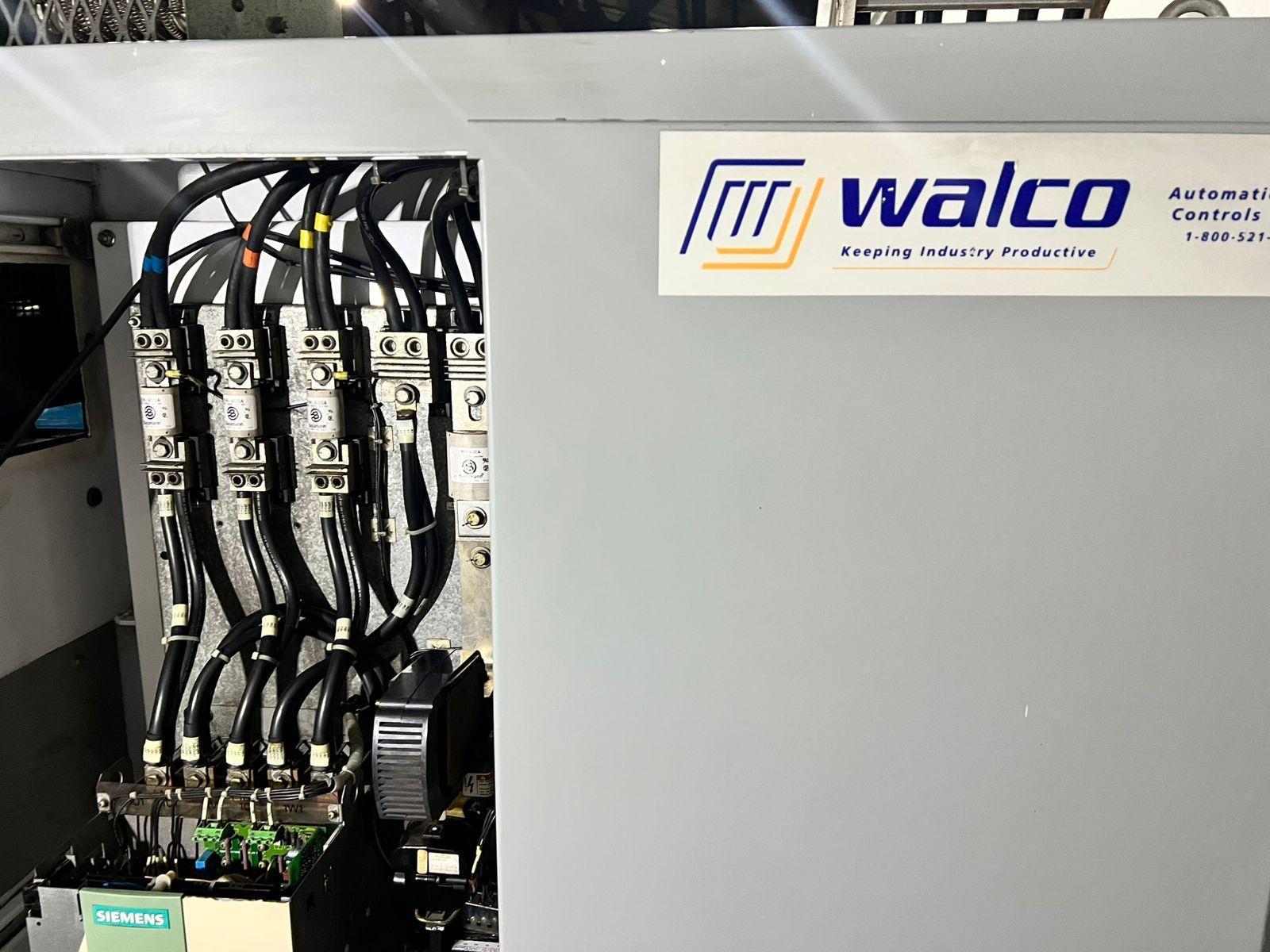

UPGRADED TO WALCO ELECTRICS
Spare Work Rolls
Spare Back-Up Rolls 2 Sets with Bearings
Post's are 8.5" x 7.38" (216mm x 187mm)
Complete With All Engineering Drawings, and Hydraulics
INSTALLED AND RUNNING
Videos of Mill Running Available
