In the world of industrial manufacturing, tube mills are essential for producing various types of metal pipes and tubes. These sophisticated machines use precise mechanisms to transform raw materials into high-quality, finished products. This post provides a thorough overview of the functions and operations of a tube mill.

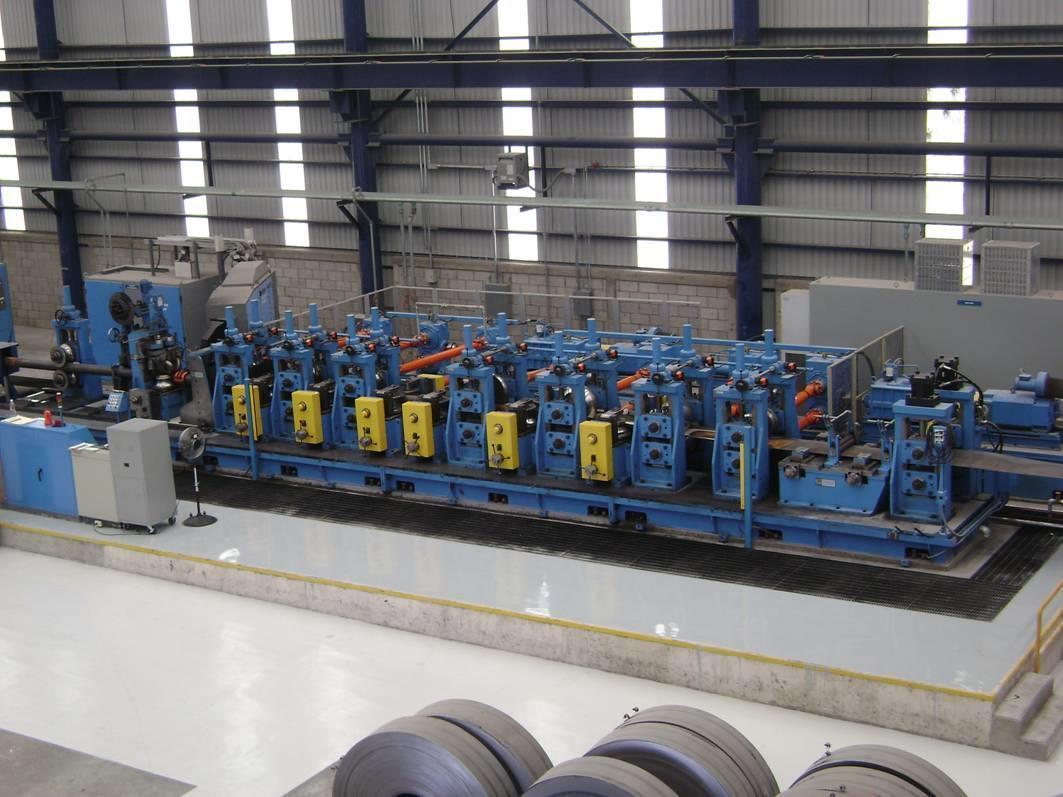

A tube mill, also referred to as a pipe mill, is a machine used to manufacture metal pipes and tubes. It transforms a flat strip or coil of metal into a cylindrical shape, which is then longitudinally welded to create a continuous tube. Tube mills are widely used in industries such as construction, automotive, oil and gas, and furniture manufacturing.
The process begins with uncoiling a metal strip or coil, typically made of steel or stainless steel. The strip passes through a series of rollers that flatten and straighten it, ensuring uniformity and removing any deformations or bends.
After straightening, the flat strip enters the forming section of the tube mill. Here, a set of rolls gradually bends the strip into a tubular shape. These rolls are carefully designed to progressively shape the strip while maintaining the desired dimensions and tolerances.
Once the tube shape is formed, the edges of the strip are heated using high-frequency induction or electric resistance to create a plasticized state. The heated edges are then pressed together under pressure to forge a continuous weld. Various welding techniques, such as high-frequency welding (HFW) or electric resistance welding (ERW), are employed based on the specific requirements of the tube.
Following welding, the tube passes through a series of sizing and shaping rolls. These rolls ensure that the welded seam is smoothed out and the tube attains its precise dimensions. Additionally, the rolls may incorporate specialized profiles to produce tubes with specific cross-sectional shapes, such as square, rectangular, or oval.
Once the tube reaches the desired length, it is cut to size using a flying saw or another cutting mechanism. The cut ends are then deburred to remove any sharp edges or burrs, resulting in a smooth and finished tube. Further finishing processes, such as end-facing, chamfering, or surface treatment, may be employed to meet specific product requirements.
Throughout the tube mill process, various quality control measures are implemented to ensure the integrity and consistency of the manufactured tubes. Non-destructive testing techniques, such as ultrasonic or eddy current testing, may be used to detect defects, cracks, or inconsistencies. Additionally, dimensional measurements, surface inspections, and material analysis are conducted to adhere to stringent quality standards.
Tube mills are crucial machines in the production of metal pipes and tubes. By employing a series of precise steps—uncoiling, straightening, forming, welding, sizing, and finishing—these mills transform raw materials into high-quality, ready-to-use tubes. Understanding how a tube mill functions provides valuable insights into the manufacturing processes behind the essential products used across various industries.
